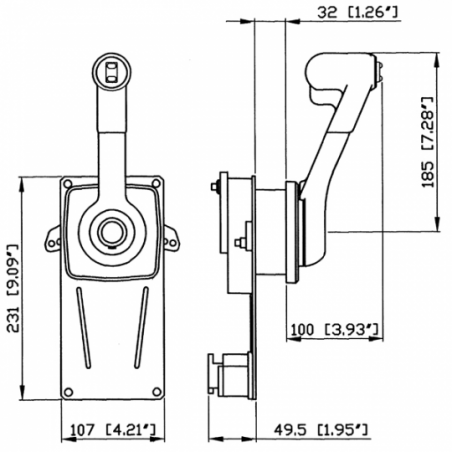

CONTROL BOX B184
Art. 4242014
Top and side mount dual action controls with lever lock device and trim switch for throttle and gearbox. Suitable for any kind of boat with outboard motor, inboard, and stern-drive, with hydraulic
gearbox. Mounts port or starboard, horizontally or vertically. The hub and the
lever are made in die-cast aluminium and varnished. Built-in friction drag to
prevent throttle creep. Warm-up are done by pulling out the hand levers. With
safety switch X12 (optional), start can be done only with gearbox in the neutral
position. The model B184 has in the hand levers a trim switch to adjust tilt of
outboard and stern-drive. Suitable for all type of control cables C2-C8-C14 e Mach0-Mach14. C5-C16 and Mach 5
cables need adapter kit K35, art. 4242069.
gearbox. Mounts port or starboard, horizontally or vertically. The hub and the
lever are made in die-cast aluminium and varnished. Built-in friction drag to
prevent throttle creep. Warm-up are done by pulling out the hand levers. With
safety switch X12 (optional), start can be done only with gearbox in the neutral
position. The model B184 has in the hand levers a trim switch to adjust tilt of
outboard and stern-drive. Suitable for all type of control cables C2-C8-C14 e Mach0-Mach14. C5-C16 and Mach 5
cables need adapter kit K35, art. 4242069.
Available
Availability over 7d
| Product | cable | Trim | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|---|
| 4242014 | C2 - C8 - C14 - MACH 0-MACH 14 / CON K35: C5 - C16 - MACH 5 | YES | €479.46 | N | 1 |
