UNIVERSAL HYDRAULIC STEERING GF90BT
Art. 4344390

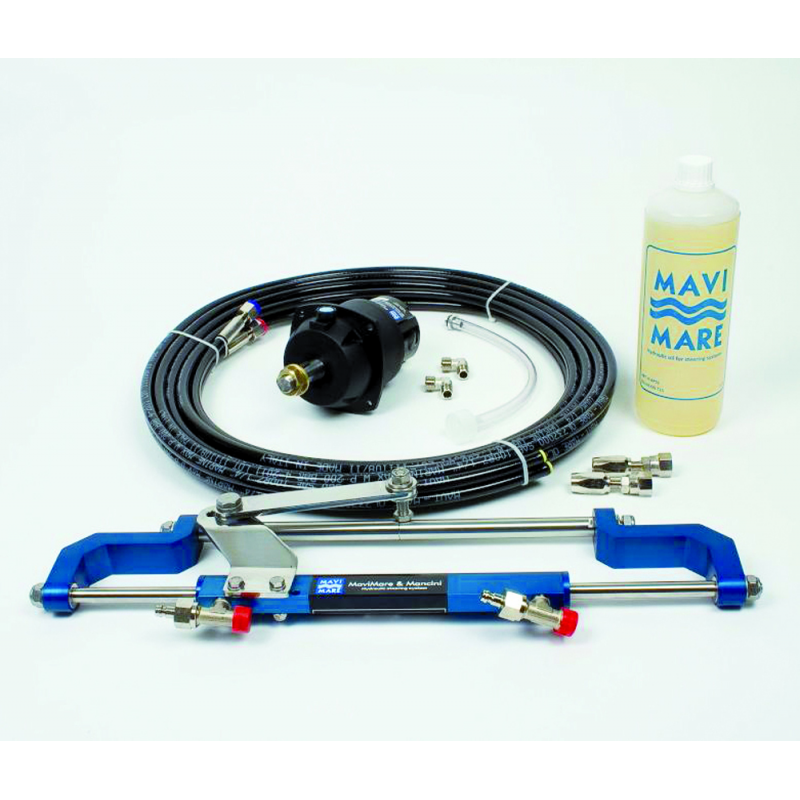

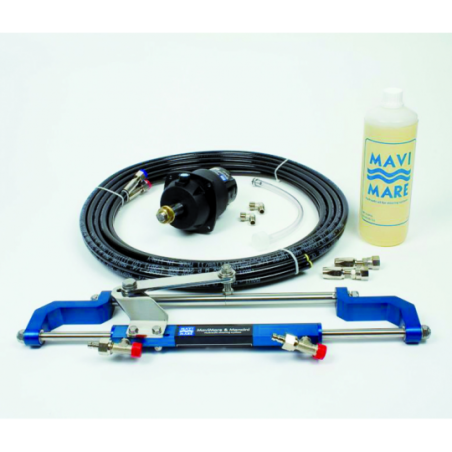

Kit GF90BT universal
for all engines up to 80 HP, includes: - Pump GM3-MRA mounting, with non-return valve and pressure relief. Can be mounted semi-recessed
with square flange included: Pistons 7, Volume 14 cm3, max pressure 50 bar - Cylinder MC90B, volume 75 cm3, 100 mm stroke,
rod Ø mm. 12 - Hydraulic oil 1 lt, 2 tubes R7 5/16 length. mt. 5.00, connected by only one side + 2 fittings recoverable to perform the desired
length.
for all engines up to 80 HP, includes: - Pump GM3-MRA mounting, with non-return valve and pressure relief. Can be mounted semi-recessed
with square flange included: Pistons 7, Volume 14 cm3, max pressure 50 bar - Cylinder MC90B, volume 75 cm3, 100 mm stroke,
rod Ø mm. 12 - Hydraulic oil 1 lt, 2 tubes R7 5/16 length. mt. 5.00, connected by only one side + 2 fittings recoverable to perform the desired
length.
Available
Availability over 7d
| Product | Description | Price list €(vat incl.) | Unit | Avail. |
|---|---|---|---|---|
| 4344390 | HYDRAULIC STEERING GF90BT | €1,041.88 | N | 1 |
