TELESCOPIC GANGWAYS ANTARES MODEL

Name: TELESCOPIC GANGWAYS ANTARES MODEL
Brand: Forniture Nautiche Italiane
SKU: 3033227
Price: 12529.4 EUR
Availability: InStock

Art. 3033227

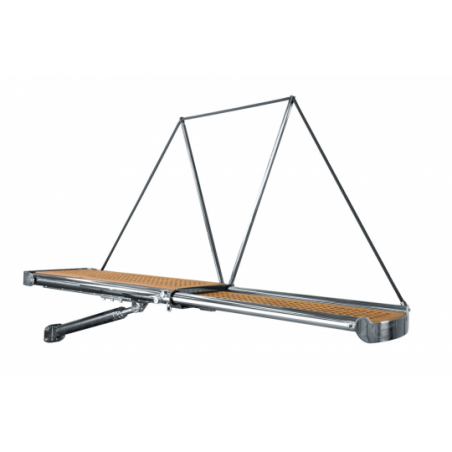

Telescopic hydraulic gangways ANTARES
mirror-polished AISI 316 stainless steel with semi-esagonal structure. Railings with automatic lowering device, interchangable right/left to be mounted
on both sides of the gangway. Real teak floorboard. Electronic control unit with simple “PLUG & PLAY” wiring. Possibility to modify the gangway ful-
crum position for an optimal positioning of the lifting piston. The 12- or 24-volt gangway (to be specified) is equipped with:
- Hydraulic control unit with electrovalve
- High-pressure hydraulic piping with AISI 316 S.S. fittings
- Electronic control unit
- Built-in control panel
- App for remote control
- Stanchions
- Stern plate
- Instructions for installation and use.

Send by email

Show entries

Search:

Available

Availability over 7d

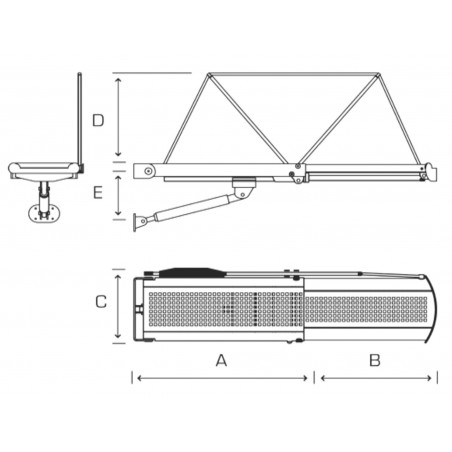

Product	Supply	Model	Length	A	B	C	D	E	Flow	Weight	Price list €(vat incl.)	Unit	Avail.
3033227	12 V	ANTARES 27	2700 MM	1210 MM	1490 MM	480 MM	800 MM	400 MM	400 KG	128 KG	€12,529.40	N	4
3033230	12 V	ANTARES 30	3000 MM	1360 MM	1640 MM	480 MM	800 MM	400 MM	350 KG	140 KG	€13,261.40	N	4
3033233	12 V	ANTARES 33	3300 MM	1510 MM	1790 MM	480 MM	800 MM	400 MM	350 KG	152 KG	€13,261.40	N	4
3033243	24 V	ANTARES 23	2300 MM	1060 MM	1340 MM	480 MM	800 MM	400 MM	400 KG	115 KG	€11,431.40	N	4
3033247	24 V	ANTARES 27	2700 MM	1210 MM	1490 MM	480 MM	800 MM	400 MM	400 KG	128 KG	€12,529.40	N	4
3033250	24 V	ANTARES 30	3000 MM	1360 MM	1640 MM	480 MM	800 MM	400 MM	350 KG	140 KG	€13,261.40	N	4
3033253	24 V	ANTARES 33	3300 MM	1510 MM	1790 MM	480 MM	800 MM	400 MM	350 KG	152 KG	€14,042.20	N	4

Showing 1 to 7 of 7 entries
