TELESCOPIC GANGWAYS SPICA MODEL

Art. 3033020

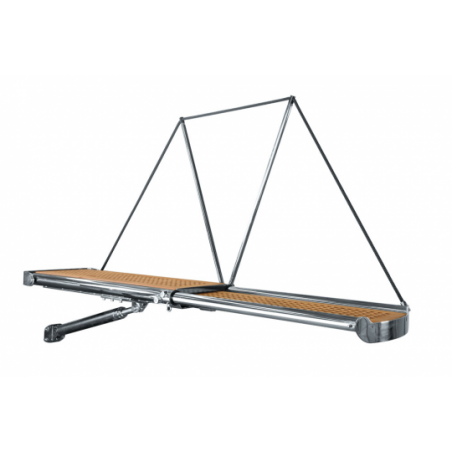

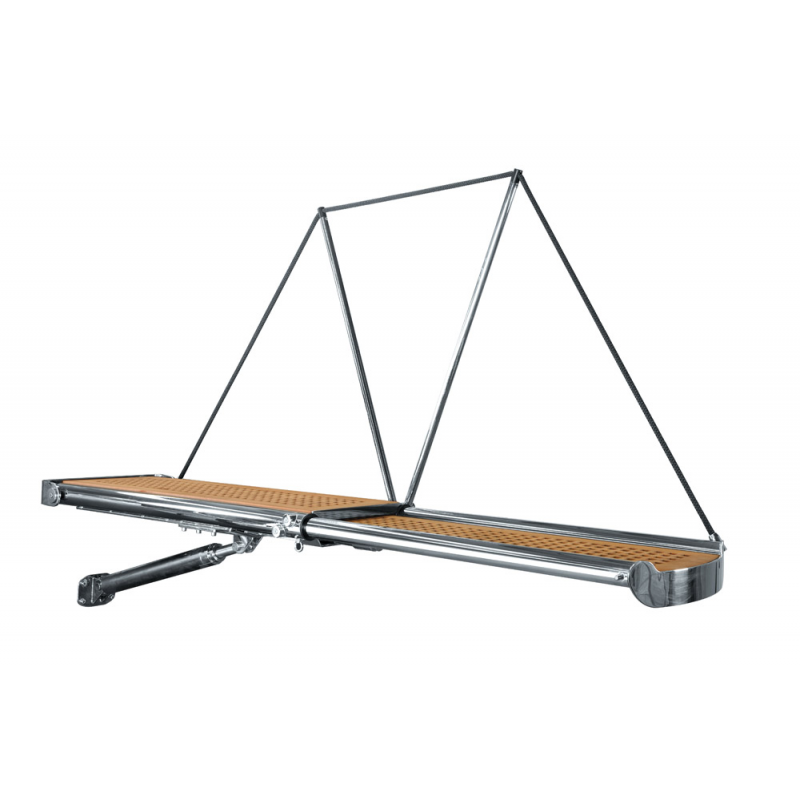

Telescopic hydraulic gangways SPICA mirror-polished AISI 316 stainless steel with circular structure. Railings with automatic lowering device, interchangable right/left to be mounted on both sides of the gangway. Real teak floorboard. Electronic control unit with simple “PLUG & PLAY” wiring. Possibility to modify the gangway fulcrum position for an optimal positioning of the lifting piston. The 12- or 24-volt gangway (to be specified) is equipped with:
- Hydraulic control unit with electrovalve
- High-pressure hydraulic piping with AISI 316 S.S. fittings
- Electronic control unit
- Built-in control panel
- App for remote control
- Stanchions
- Stern plate
- Instructions for installation and use.
Send by email

TELESCOPIC GANGWAYS SPICA MODEL

GANGWAY SPICA 20 12V. MM.2000

I accept privacy policy rules

Print
Available
Availability over 7d

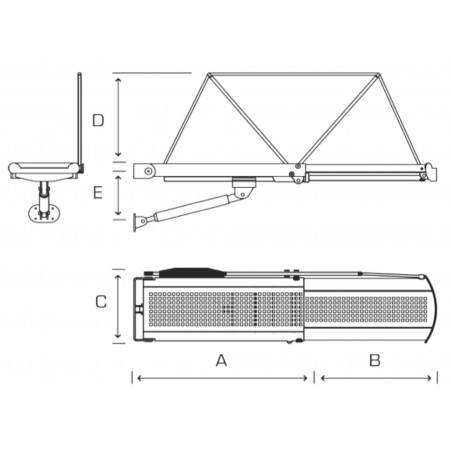

Product Supply Model Length A B C D E Flow Weight Price list €(vat incl.) Unit Avail.
3033023 12 V SPICA 23 2300 MM 1285 MM 1015 MM 470 MM 800 MM 350 MM 200 KG 110 KG €8,786.44 N 4
3033047 24 V SPICA 27 2700 MM 1485 MM 1215 MM 470 MM 800 MM 350 MM 200 KG 125 KG €9,703.88 N 4
3033020 12 V SPICA 20 2000 MM 1135 MM 865 MM 470 MM 800 MM 350 MM 200 KG 95 KG €8,242.60 N 4
3033043 24 V SPICA 23 2300 MM 1285 MM 1015 MM 470 MM 800 MM 350 MM 200 KG 110 KG €8,786.44 N 4
3033027 12 V SPICA 27 2700 MM 1485 MM 1215 MM 470 MM 800 MM 350 MM 200 KG 125 KG €9,703.88 N 4
3033040 24 V SPICA 20 2000 MM 1135 MM 865 MM 470 MM 800 MM 350 MM 200 KG 95 KG €8,242.60 N 4
