FUSES

Name: FUSES
Brand: Forniture Nautiche Italiane
SKU: 3910563
Price: 11.85 EUR
Availability: InStock

Art. 3910563

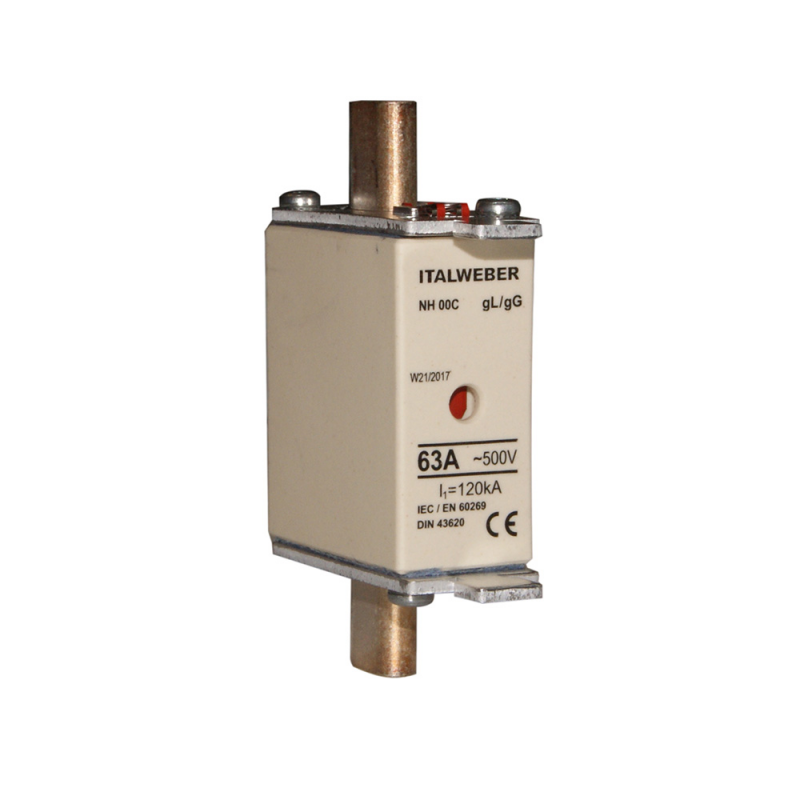

Fuses made in steatite at high thermal and mechanical resistance. High room to extinguish arc. Fuses in silver plated copper are welded to contact blades put in the fuse body closed with special gaskets and fasteners. Equipped with a device on the upper part. It is a disc coming out of his place after use. Nominal voltage 500 V. 50/60 Hz.

Send by email

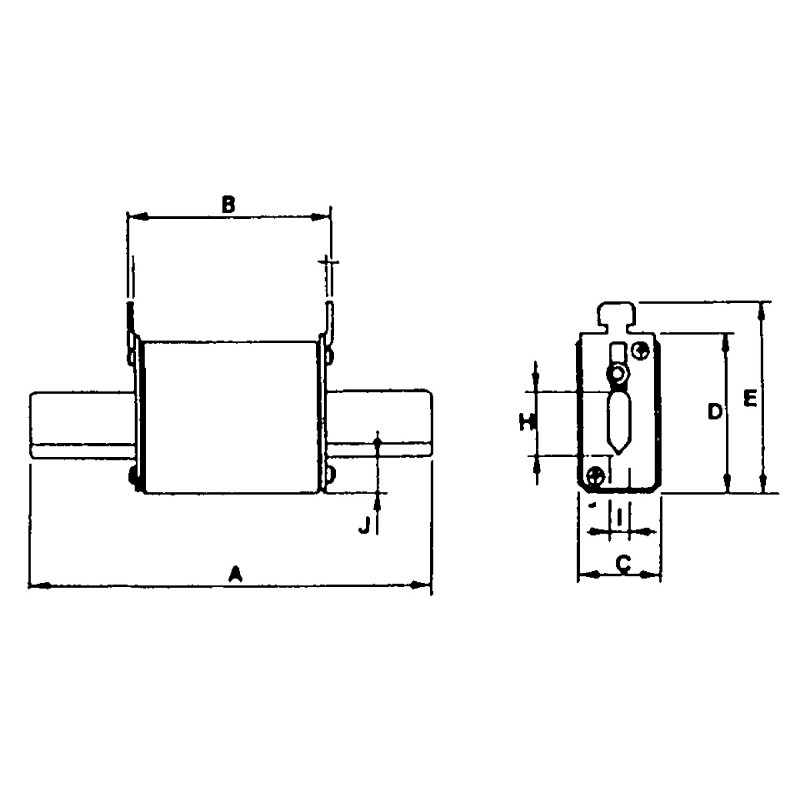

Product	TYPE	A	B	C	D	Price list €(vat incl.)	Unit	Avail.
3910750	250 AMP	135 MM	68 MM	50 MM	50 MM	€24.75	N	1
3910625	125 AMP	78,5 MM	49 MM	21 MM	37 MM	€13.48	N	1
3910900	400 AMP	150 MM	68 MM	58 MM	58 MM	€35.99	N	1
3910563	63 AMP	78,5 MM	49 MM	21 MM	37 MM	€11.85	N	1
3910815	315 AMP	150 MM	68 MM	58 MM	58 MM	€35.99	N	1
3910580	80 AMP	78,5 MM	49 MM	21 MM	37 MM	€13.51	N	1
3910660	160 AMP	78,5 MM	49 MM	21 MM	37 MM	€13.47	N	1
3910600	100 AMP	78,5 MM	49 MM	21 MM	37 MM	€11.85	N	1
3910855	355 AMP	150 MM	68 MM	58 MM	58 MM	€35.99	N	1
3910700	200 AMP	135 MM	68 MM	50 MM	50 MM	€24.75	N	1
